Açıklama

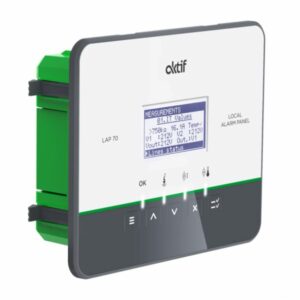

EDS 30 Insulation Fault Location Device is designed to detect the location of insulation fault in IT systems. The fault location device EDS 30 communicates with the Insulation Monitoring Device (IMD30) with the ModBus RTU protocol and determines which line the fault originates from in a very short time. It continuously scans its 6 current transformers and if a leakage is detected the alarm LED of the faulty channel lights up. Alarm details are displayed on the Local Alarm Panel (LAP 70) and the Remote Alarm Indicator (RAI 70).
Advantages
- Elegant designed to detect the location of insulation fault in IT systems.
- Number of channels: 6
- Remote insulation test and fault contact outputs
Applications Areas
It is used in Isolated Power Panels used in the electrical supply of Group 2 rooms in Medical Facilities (Hospitals, Health Centers, Dental Clinics, Aesthetic Centers, Animal Hospitals):
Group 2 rooms:
- Anesthetic rooms
- Operating rooms
- Operation preparation rooms
- Recovery room
- Cardiac catheterization rooms
- Intensive care units
- Angiographic examination rooms
Standards
- IEC 61557-9
- IEC 60364-7-710
| Technical Specification | |
| Supply Voltage | 24 Vac/dc |
| Frequency | 50/60 Hz |
| Power Consumption | 1,5 W |
| Number of Channels | 6 |
| CT Inner Diameter | ≤ 1 kΩ |
| Insulation Measurement Uncertainty | 11,5 mm ± 0,3 |
| Response Time | ≤ 2 s |
| Response Value | <0,5 mA |
